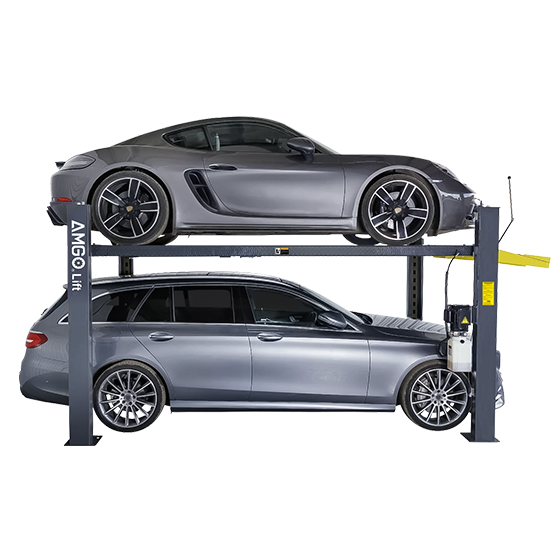

AMGO 408-HP 8,000 lbs. Capacity 4-Post Parking Auto Lift
Call our equipment specialists at (203) 813-0414 or WhatsApp +1 (213) 804-0454.
Product Specifications & Overview
Description

408-HP
SHIPPING/DELIVERY CHARGES
AMGO Equipment does not ship free, even if it shows ZERO freight charges during check out.
Please check with us first how much shipping will be, email sales@streetoolequipment.com and mention :
the item #,
-the shipping ZIP code and
-if it is residential or commercial delivery.
Equipment to unload will be required, or we can ship to a freight termilnal where you can pick up with a trailer.
If you are near one of the AMGO warehouse, you can pick up from there and avoid the freight charges.
AMGO LOCATIONS:
- Temecula, CA
- Manning, SC
- Dallas, TX
408-HP is the higher model with 12″ (300mm) higher than 408-P.
408-HP
Features
• 8,000 lbs. capacity, which is perfect for light-duty vehicles
• AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column simultaneous.
• Double-S shaped columns help increase the columns strength
• Skid proof diamond platform provides traction for the tires to stay put.
• Optional parts: 4 plastic drip trays,1 jack tray and caster kits set of 4
• Flexible Design: The power side column can be installed at any corner
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

| Model | 408-HP |
| Lifting Capacity | 8,000lbs(3,500kg) |
| Lifting Time | 122s / 54s |
| A: Overall Length (Inc Ramps) | 207″(5257mm) |
| B: Overall Length (No ramps) | 173 1/4″(4400mm) |
| C: Overall Width | 109 5/8″ (2784mm) |
| D: Width Between Columns | 96″ (2438mm) |
| E: Max. Lifting Height | 85 1/2″(2172mm) |
| F: Overall Height | 94 5/8″(2405mm) |
| G: Minmun Height | 6 1/8″(155mm) |
| H: Max. Underneath Height | 80 5/8″(2047mm) |
| I: Drive-Thru Clearance | 81 5/8″(2074mm) |
| J: Width Between Columns | 37″ (940mm) |
| K: Outside Edge of Runways | 74 3/8″ (1890mm) |
| Gross Weight | 1,892 lbs(858 kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
