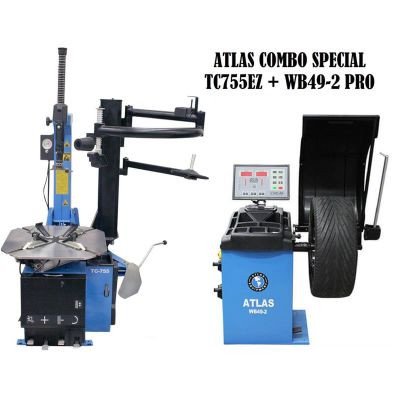

Atlas Equipment TC755EZ Rim Clamp Tire Changer + WB49-2 PRO Wheel Balancer Combo Package

• Tire Changer & Wheel Balancer Combo Package:

  This combination package includes the Atlas® TC755 rim-clamp tilt-back column tire changer & the Atlas® WB49-2 premium computerized spin balancer. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.

• Atlas® TC755EZ Tire Changer

  • Tilt-Back Column Tire Changer
  • Rim-Clamp Style
  • EZ Assist Arm Included
  • Extra-Large turntable, more clearance
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Button-Controlled Bead Breaker (operated at blade)
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included
  • Filter/Regulator/Lubricator Included
  • 20″ Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Built in “Beadblaster”





  Atlas® WB49-2-PRO Wheel Balancer

  • Computer Controlled Motorized Spin Balancer
  • Raised, Easy to Read Display
  • Large Wheel Weight Tray
  • Automatic 3D Data Entry (Special Gauge for Width Measurment Included)
  • Split-Weight Function for hiding weights behind spokes
  • Automatic LED Light
  • Auto-Positioning
  • Automatic and pedal operated brake.
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-Diagnosing and Self-calibrating
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • No anchor-down installation needed
  • Includes Plastic Quick-Relase Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers





  This combination package includes the Atlas® TC755EZ rim-clamp tilt-back tire changer with assist arm & the Atlas® WB49-2-PRO computerized spin balancer. This combination is perfect for commercial shops looking to handle a large volume of wheels daily as well as being able to change and balance custom, high-end wheels. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty. This part number is FREIGHT PREPAID.



  Atlas® TC755EZ Specifications

  • External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8″ to 27 7/8″
  • Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8″ to 29 7/8″
  • Maximum Tire Diameter: 47″
  • Maximum Wheel Width (Bead Breaker): 18″
  • Table Motor: 1 HP
  • Turntable Rotating Torque: 885 ft/lbs.
  • Bead Breaker: 5500 LB. Force
  • Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
  • Electric Requirement: 110volt
  • Shipping Weight: 700 lbs







  Atlas® WB49-2-PRO Specifications



  • Max Tire Diameter: 39″
  • Rim Sizes (Cars & Light Trucks): 10″ – 32″ (Manual Data Entry May be Required over 23″)
  • Rim Width: 1 1/2″ – 20″
  • Shaft Size: 40mm
  • Max Wheel Weight: 150 lbs.
  • Balancing Speed: 150 rpm
  • Data Entry: Automatic 3D
  • Measurement: Standard or Metric
  • Accuracy: 1 gram
  • Weight Position Resolution: 1.4 Degrees
  • Self Calibrating: YES
  • Motor: 1/4 Horsepower
  • Electric Requirement: 110volt
  • Shipping Weight: 400 lbs





  Accessories Available

  • Center Post Adapter
  • Quick Change Mount/Demount Head Kit
  • Front Mounted Wheel Lift
  • Leverless Head Device
  • Specifications

• TC755EZ Tire Changer

• • Tilt-Back Column Tire Changer
  • Rim-Clamp Style
  • Extra-Large turntable, more clearance
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Button-Controlled Bead Breaker (operated at blade)
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included
  • Filter/Regulator/Lubricator Included
  • 20″ Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Built in “Beadblaster”

  WB49-2 Wheel Balancer

• Computer Controlled Motorized Spin Balancer
• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic 2D Data Entry
• Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
• Split-Weight Function for hiding weights behind spokes
• Automatic LED Light
• Auto-Positioning
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed
• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
