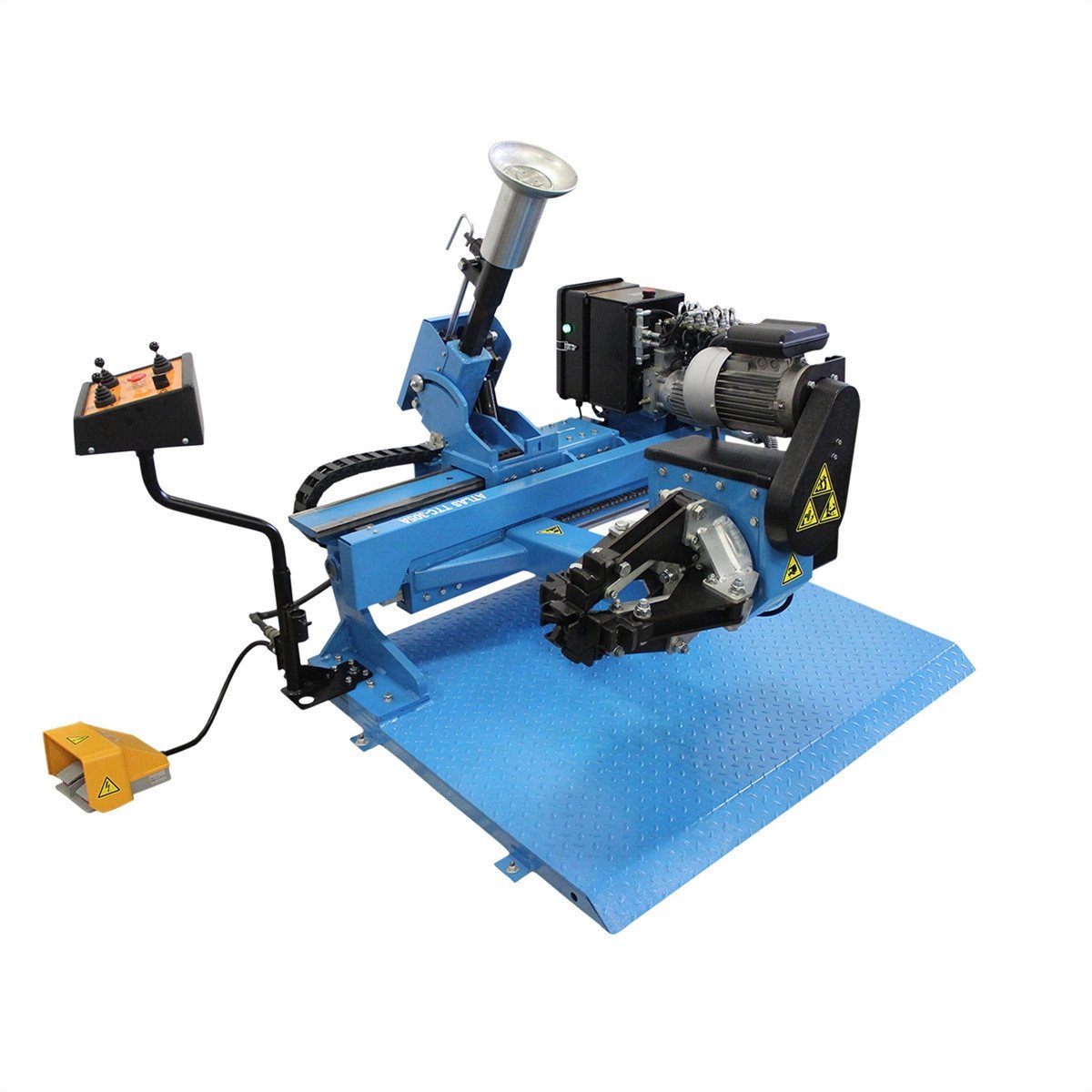

Atlas® TTC305 (220 Volt/1 Phase) Automatic Heavy Duty Truck Tire Changer
Call our equipment specialists at (203) 813-0414 or WhatsApp +1 (213) 804-0454.
Product Specifications & Overview
Description
Atlas Equipment Sales is excited to announce the introduction of our New Heavy Duty Automatic Atlas® TTC-305 truck tire changer. This Heavy Duty Atlas® truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas® TTC-305 truck tire changer can easily accommodate tires with a maximum width of 30.5 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia.
The TTC-305 truck tire changer features a single speed hydraulic chuck with five (5) locking rim positions. The ergonomic toggle control panel and foot pedals control the automatic operation of the truck tire changer. The main panel allows the technician to control the automatic movement of the chuck arm, the automatic positioning of the bead tool (raise and lower) and the automatic movement of the carriage to align the bead tool with the tire. The foot pedals control the rotational direction of the chuck. The Atlas® TTC-305 comes with a standard mount/demount head and a super fast roller head that can be swapped out in very little time. There is an emergency safety switch on the control panel that can stop all functions immediately.
This is the perfect automatic tire changer for high production shops that change semi-tires, 19.5 tires and forklift tires. Quit using tire irons and a strong back! Watch the Atlas® TTC-305 take the hard work out of changing those tires that are too big for your passenger tire wheel clamp tire changer.
The Atlas® TTC 305 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on over the road wheel assemblies. The automatic features of this truck tire changer allow the operator to drastically reduce the time it takes to mount and demount a truck tire.
To compare truck tire changers, Click Here
| Atlas® TTC305 Specifications | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Hole Diameter | 8″ – 23″ (11″ – 26″) With Adapters |
||||||||||||||||||||||
| Max. Wheel Weight | 838 LBS. | ||||||||||||||||||||||
| Max. Tire Diameter | 55″ | ||||||||||||||||||||||
| Max. Tire Width | 30 ½” | ||||||||||||||||||||||
| Clamping Power | 6600 LBS. | ||||||||||||||||||||||
| Hydraulic Motor Power | 2 HP 220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required. |
||||||||||||||||||||||
| Chuck Motor Power | 3 HP 220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required. |
||||||||||||||||||||||
| Operating Pressure | 0 – 1,885 PSI | ||||||||||||||||||||||
| Acoustic Pressure | <70dBA | ||||||||||||||||||||||
| Bead Breaker Force | 3990 LBS. | ||||||||||||||||||||||
| Single Piece Frame With Solid Floor-Plate | Yes | ||||||||||||||||||||||
| Tool Arm Positioning | Automatic | ||||||||||||||||||||||
| Tool Head Positioning | Automatic | ||||||||||||||||||||||
| Packaging Size | 63″ L x 61″ W x 41″ H | ||||||||||||||||||||||
| Shipping Weight | 1,490 LBS. | ||||||||||||||||||||||
