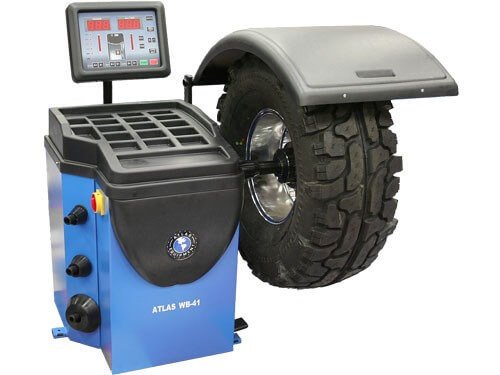

Atlas® WB41 Self-Calibrating Computer Wheel Balancer

The Atlas® WB 41 is the larger model of our extremely popular Atlas® WB-11.

The Atlas® WB-41 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually ” plug and play ” so repair is easy when it is time to replace parts. The Atlas® WB-41 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas® WB-41, both in ease of use and ease of repair, make this balancer the perfect choice for your professional tire shop.

The Atlas® WB-41 wheel balancer balances wheels that weigh up to 130 LB. Many balancers claim that they have 150 lb wheel capacity. There is a BIG difference between the shaft being able to support a 150 lb wheel assembly and the balancer being able to accurately balance the 150 lb. wheel assembly.

• Auxiliary Brake Pedal
• Newly Designed Computer Board
• Keypad and Screen
• CE Tested And Approved
• Atlas® Wheel Balancer 1 Year Limited Warranty

• Higher, easy to read display
• Large weight tray
• Automatic positioning where to apply weights.
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, in mm or inches.
• No anchor-down installation needed.
• Shipping Weight: 400 LBS.

Atlas® WB41 Specifications
Max Tire Diameter												39″
Rim Sizes (cars and light trucks)												10″-32″
Rim Width												1 ½”-20″
Shaft Size												40mm
Max. Wheel Weight												165 LBS.
Balancing Speed												150 R.P.M
Automatic Data Entry												NO     Watch Video
Truck Adapter Set												Optional
Warranty												1 year limited
Shipping Weight												400 LBS.
Power Supply												110V 1Ph
Motor												¼ HP
Display												Standard or Metric
Accuracy												1 g
Weight Position Resolution												1.4 Degrees
Self Calibration												YES
