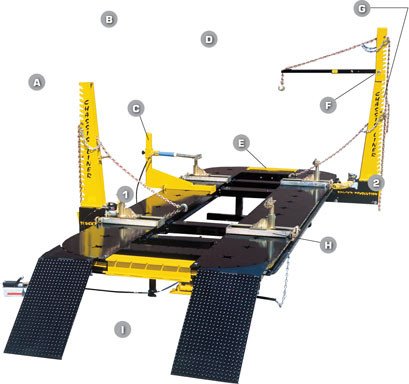

Chassis Liner Truck’ N Revolution 22′ 2-Towers – Air Hydraulic Tilt Bed

22ft Truck’n Revolution – 2 Tower Frame Rack Frame Rack Features:

• Bed plumbed with air.
• 86″ Wide Bed.
• 27″ Treadways.
• 27″ Working Height.
• Exclusive! 1/2″ laser cut top plate.
• Multiple chain slots for tie downs.
• Totally enclosed treadways for additional strength.
• Heavy-Duty 15-ton scissor lift.
• Hinge-a-matic non-skid ramps for safe loading and unloading.
• Wheel-less towers roll around the machine effortlessly.
• 10-Ton pulling towers.
• Exclussive slotted tower upright (60″ tower height).
• Exclussive multiple pulling capabilities up to 3-PULLS per tower!

Includes:

• (2) 10-ton Clear Floor wheel-less towers
• (2) Air/hydraulic pumps complete with guages (for towers)
• (1) Air/hydraulic pump (for lift)
• (2) Tower rollers
• (4) Adjustable unibody tie-downs with upright holders
• (4) Drive-over bases
• (2) 3/8″ x 10ft chains with slip hooks
• (1) 15-ton heavy-duty lift with hydraulics
• (2) Removable front cross member
• (2) Hinge-a-matic? non-skid ramps

The following items may be pictured, but are optional:

• 05-784255 Power Pusher
• 05-832430 Tower Extension

  Specifications Weight:

• TNR 18, #832030 6,300 lbs. (2858 kg)
• TNR 20, #832075 6,900 lbs. (3130 kg)
• TNR 22, #832120 7,600 lbs. (3447 kg)

Length:

• TNR 18 18′ (5.5m) with towers extended 22′ 8″ (6.9m)
• TNR 20 20″ (6.12m) with towers extended 24′ 8″ (7.55m)
• TNR 22 22″ (6.73m) with towers extended 26′ 8″ (8.16m)

Width:

• TRN 18, TRN 20, TRN 22 86″ (2.19m) with towers extended 142″ (3.62m)

Height:

• TRN 18, TRN 20, TRN 22 7′ 3″ (2.22m) with towers extended 142″ (3.62m)

Misc.:

• Treadway Width 27″ (.69m)
• Working Height 27″ (.69m) ? FLOOR TO TOP OF BED
• Hydraulic Power 10 Tons Per Tower
• Lifting Capacity 15-Ton Ram on Lift
• Hydraulics Air: 100PSI

Two towers with air hydraulic tilt bed.

• Pull Up to 10 Tons!
• 360° Pulling
• Wheel-less Towers
• 3 Pulls per Tower

1. New! Swivel Design –
ExclusiveSwivel design provides versatility of pulling from multiple angles and corners

2. Exclusive! Pulling Capabilities –
Multiple pulling capabilities up to 3 pulls per tower!
