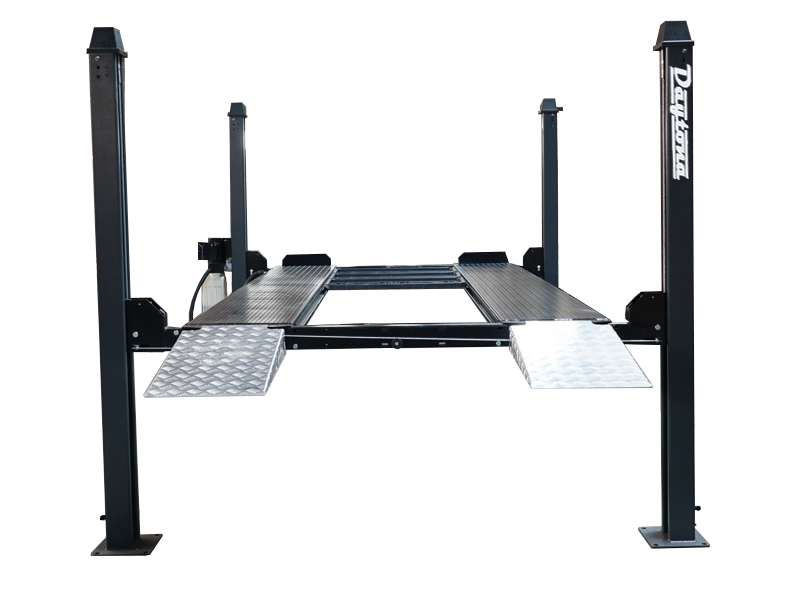

Daytona LFPP9 9,000lb 4-Post Parking Lift

*Optional Rolling Jacks and Wheel Kits are sold separately.

*Parking lift comes with:

  -set of aluminum ramps,

  -1 steel jack tray and

  -3 plastic drip trays

Specifications:

• Features:

  • Four mechanical locking devices, each equipped with both primary and secondary safety locks

  • Single point manual safety release

  • Removable tilting Aluminum approach ramp

  • Large heavy duty 3” cylinder

  • Aircraft quality lifting cables

  • Matted powder coat finish



  Power – 110V, 1PH, 20AMP

  Rise Time – 90s

  Drop Time – 60s

  9k 4 Post Parking



  Post Dimensions – 7″ x 5″

  Post Bases – 12″ x 10″

  Approach Ramp Dimensions – 36″ x 18″

  Drive Through Clearance – 81-3/4″







  A – Clearance under runway at full height – 74″

  B – Overall Height – 98″

  C – Overall Length including Posts Bases – 180″

  D – Pump sticks out 15″ from Post

  E – Overall width including Posts Bases – 108″

  F – Inner width inside Posts – 94.5″

  G – Runway span – 76″

  H – Runway width – 19″

  I – Runway length – 164″

  J – Inner length inside Posts – 162″

  K – Approach Ramp Dimensions – 36″ x 18″

  L – Post Dimensions – 7″ x 5″ Post Bases – 12″ x 10″
