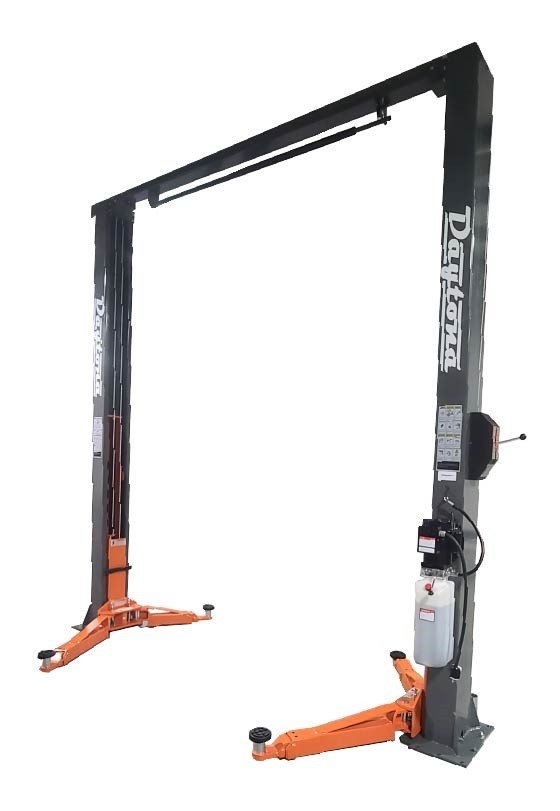

Daytona  LTPO15-SET 15,000lb 2-Post Overhead Lift with Height Kit

(Comes with 2-Feet extension kit)

Specifications:

Features:

• 15,000 lbs lifting capacity with arms fully extended
• Automatic safety locks, with single point lock
• High polymer polyethylene wear resistant slide blocks
• Dual direct drive Hydraulic cylinders
• Screw up pads
• Height limit switch
• Rubber door guards
• Powder coat finish for durability
• Three stage front arms and rear arms
• Truck adapters standard

LTPO15 Specification

• 15,000 lb lifting capacity

• Maximum lifting height: 74.8″

• Minimum pad height: 3.9″ – 7.48″

• Overall height: 176.8″

• Overall width: 152.8″

• Overall floor width: 163.0″

• Width between columns: 133.9″

• Drive-thru width: 119.2″

• Column base width: 18.1″

• Column offset distance: 9.5″

• Overhead clearance: 6.5″

• Base plate thickness: 0.8″

• Arm reach range: 35.4″ – 70.8″

• Arm sweep width: 23.6″

• Inner arm clearance: 13.5″

• Lower column height: 65.6″

• Power: 240V / 3HP / 13A / Single Phase / 60Hz

• Concrete Requirements: Minimum of 8″-3000psi

• Shipping Dimensions:

  • Lift: 155″ × 25″ × 40″ (2,700 lbs)

  • Pump: 31″ × 11″ × 12″ (60 lbs)

  • Height Kit: 26″ × 12″ × 18″ (200 lbs, included)

LTPO15 15,000lb 2-Post Overhead Lift Special Features

• 15,000 lb lifting capacity for heavy-duty vehicles

• Overhead 2-post design for increased floor clearance

• Automatic safety locks with single-point lock release

• Dual direct-drive hydraulic cylinders for balanced lifting

• High polymer polyethylene wear-resistant slide blocks

• Three-stage front and rear arms for flexible vehicle positioning

• Screw-up pads for precise lift adjustment

• Height limit switch for added overhead protection

• Full rubber door guards to prevent vehicle damage

• Durable powder coat finish for long-term use

• Standard truck adapters included

• 2 ft height extension kit included and required for assembly

• Warranty:
