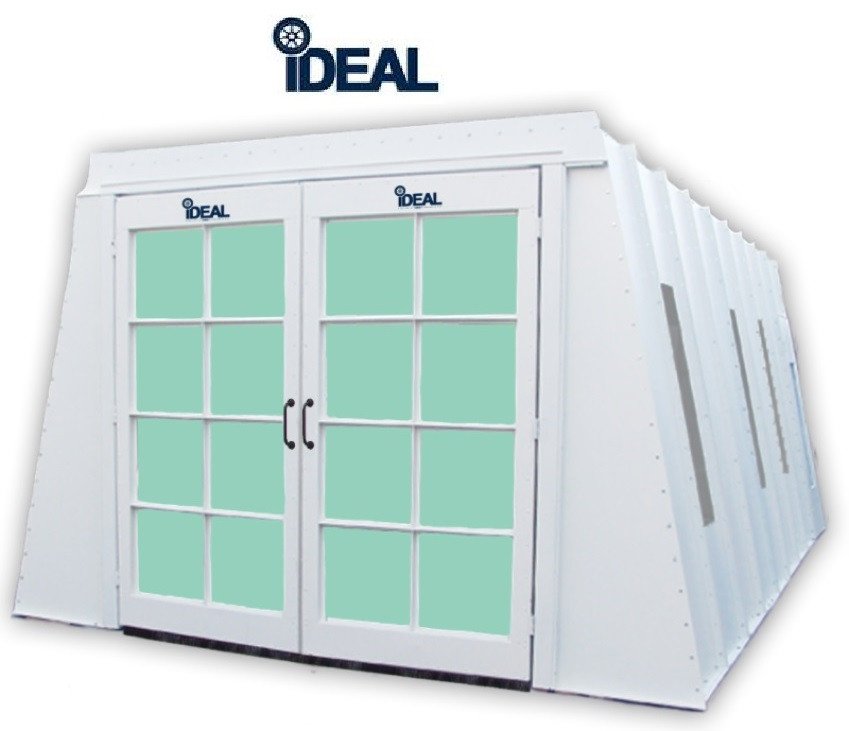

iDEAL PSB-AFCF23ASY -(1-Ph) Paint Booth (22-6L x 13W x 8H – ID) A Frame Cross Flow
Call our equipment specialists directly at (203) 813-0414.
Product Specifications & Overview
Description
iDEAL PSB-AFCF23B-1PH Paint Booth Cross Flow Draft w/ 1 Phase Motor
Economical, tilt panel design with powder coated finish both inside and outside.
Cross draft airflow design.
Description
iDEAL PSB-AFCF23B Paint Booth Cross Flow Draft w/1 Phase Motor
This cross draft airflow paint booth is economical with tilt panel design, constructed with precision punched heavy duty 18-gauge panel construction it’s iDeal choice for any auto body repair shop. We advise checking with city/state to make sure codes are met since every city/state is different.
Features
- Cross Draft Airflow
- Economical, Tilt Panel Design for Optimal Lighting Coverage
- Powder Coated Finish (Inside & Outside)
- Heavy Duty Precision Punched 18-gauge Panel Construction
- 5/16″ Bolt & Nut installation
- Personnel Door with Viewing Window
- Dayton 24″ Tube Axial Fan 3HP 1PH, Spark Resistant, Aluminum Blades, Made in USA
- Rammstein Air Deluxe Control Panel, UL Listed
- LDPI Industrial Lighting, 6 each High Quality UL Listed Light Fixtures
- Light Bulbs Included
- Air Filtration Co. Inc., High Quality Intake & Exhaust Filters
Specifications
- Inside Dimensions: 22′-6″L x 13’W x 8′-6″H
- Outside Dimensions: 25′-4″L x 13′-4″W x 8′-10″H
- Fans: 24″ Tube-Axial Non-Spark, NEMA Rated
- Motor: 3HP-1PH-230/460VAC-60HZ
- DFM: 9,500 @ .5 Static Pressure
- Lighting: 6 each T-8 Light Fixtures, Four Bulbs
- Light Bulbs Included
Filters, lights, fans included.
Deluxe control panel included
Duct work not included – Cross Flow paint booths require one 25″ duct
Optional Electric heater only for cross flow models (no gas)
No plenum needed with electric heater
