Brand: MANATEC USA

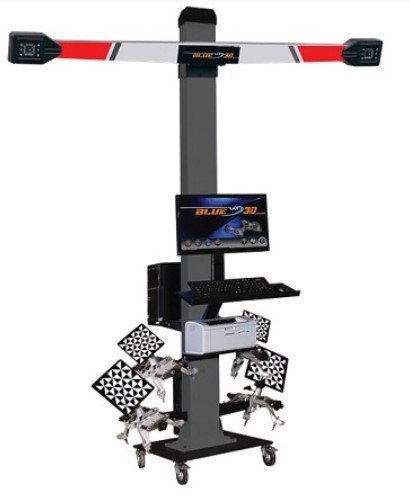

Manatec BLUE RAY 3D EBM 200 – Portable 3D Wheel Alignment Machine for Lift Applications
SKU: BLUE RAY 3D EBM 200
✓ In Stock
Availability: Usually ships in 48 Hrs.
🌍 Worldwide Shipping Available
RRP: $7,850.00
30% OFF SALE
$5,495.00
🚚 Free Freight to Direct Terminal Available • 🚢 International Ocean/Air Export
💬 Chat on WhatsApp to Buy / Inquire ➔
⚡ Fastest option: Speak directly with support to finalize order & freight.
📞
Questions, custom voltage, or overseas freight?
Call our equipment specialists at (203) 813-0414 or WhatsApp +1 (213) 804-0454.
Call our equipment specialists at (203) 813-0414 or WhatsApp +1 (213) 804-0454.
Product Specifications & Overview
Description
Manatec BLUE RAY 3D EBM 200 – Portable 3D Wheel Alignment Machine for Lift Applications
-
- Mobile 3D Wheel Aligner for Lift Application
- Vision based 3D Imaging technology using 2 High Performance Cameras
- Simultaneous Front and Rear wheel alignment (4×4)
- Capable of measuring vehicles including pick up trucks (such as Dodge RAM 3500 dually) with wheel base of up to 190”
- Push Pull Runout /Setback / Thrust angle compensation
- Lift level compensation at adjustment level
- Unlimited memory for vehicle specifications
- Option for selection of vehicle specification during alignment
- Power failure data protection
- Automatic tracking of Left & Right turns for Caster/Kingpin measurements
- Adjustment of Camber in wheel Jacked-up position & Toe curve measurement
- Rear Setback & Track width difference,
- Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements
- Effortless Toe (Easy Toe) adjustment program
- Camber measurement at Zero Toe
- Drag link adjustment
- Toe out on Turns & Lock angle measurements
- Animated pictorial display of angles during alignment
- Zoom in option for live parameters
- Two Color Bar display for adjustment of all angles
- Quick Wheel Alignment program by user defined
- Data Manager Software for storing alignment results
- Customer Address in printout & customer data edit option
- 3-D Pictorial & Two color text printout
- Multi-lingual program & Voice prompt
- Two wheel Alignment program by fixing only front two target plates
- Can be moved between Bays to use in different alignment lifts.
- Can be used with in-ground as well as on-ground lifts.
- No calibration during installation.
- With DELL PC, Monitor, Key board, Mouse & Windows 10 IOT OS
- Printer NOT Included.
- Shipping Weight: 610 lbs
- Made In India.
- One Year Manufacturer Warranty
