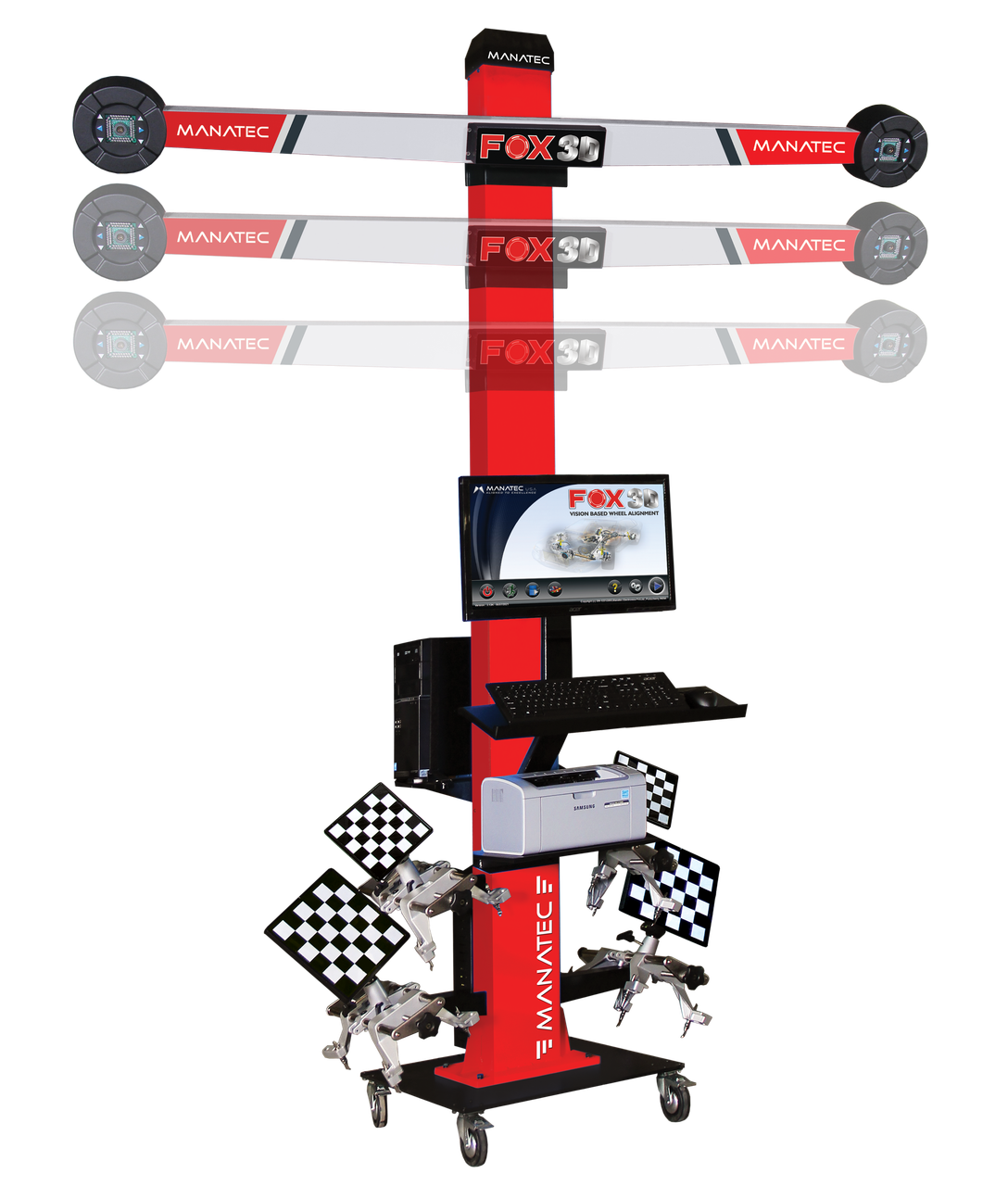

• Mobile 3D Wheel Aligner for Lift Application
• Vision based 3D Imaging technology using 2 High Performance Cameras
• Simultaneous Front and Rear wheel alignment (4×4)
• Capable of measuring vehicles including pick up trucks (such as Dodge RAM 3500 dually) with wheel base of up to 190”
• Push Pull Runout /Setback / Thrust angle compensation
• Lift level compensation at adjustment level
• Unlimited memory for vehicle specifications
• Option for selection of vehicle specification during alignment
• Power failure data protection
• Automatic tracking of Left & Right turns for Caster/Kingpin measurements
• Adjustment of Camber in wheel Jacked-up position & Toe curve measurement
• Rear Setback & Track width difference,
• Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements
• Effortless Toe (Easy Toe) adjustment program
• Camber measurement at Zero Toe
• Drag link adjustment
• Toe out on Turns & Lock angle measurements
• Animated pictorial display of angles during alignment
• Zoom in option for live parameters
• Two Color Bar display for adjustment of all angles
• Quick Wheel Alignment program by user defined
• Data Manager Software for storing alignment results
• Customer Address in printout & customer data edit option
• 3-D Pictorial & Two color text printout
• Multi-lingual program & Voice prompt
• Two wheel Alignment program by fixing only front two target plates
• Can be moved between Bays to use in different alignment lifts.
• Can be used with  in-ground as well as on-ground lifts.
• No calibration during installation.
• With DELL PC, Monitor, Key board, Mouse & Windows 10 IOT OS
• Shipping Weight: 610 lbs
• Made In India.
• One Year Manufacturer Warranty

Included Accessories:
